1.) Protocol Support: Compatible with ONVIF, IP VISCA, VISCA, and PELCO-D/P protocols.
2.) Control Interfaces: Features RJ45, RS422, RS485, and RS232 interfaces. Can control up to 255 cameras.
3.) LAN Port with PoE: Supports Power over Ethernet (PoE) for both control and power via a single cable.
4.) Customizable Control Code: Unique control code learning function allows users to modify control code instructions as needed.
5.) Individual Device Configuration: Allows independent configuration of each device on the RS485 bus with different protocols and baud rates.
6.) Parameter Setting: Camera parameters can be set directly through the keyboard's buttons.
7.) Durable Construction: Metal shell with silicone key design for enhanced durability and usability.
8.) Working Status Display: LCD display shows key statuses and provides real-time feedback on decoder and matrix working conditions.
9.) Speed Control: 4D joystick enables variable speed control for precise camera adjustments.
10.) Maximum Communication Distance: Supports up to 1200 meters communication distance with 0.5mm twisted-pair cable.

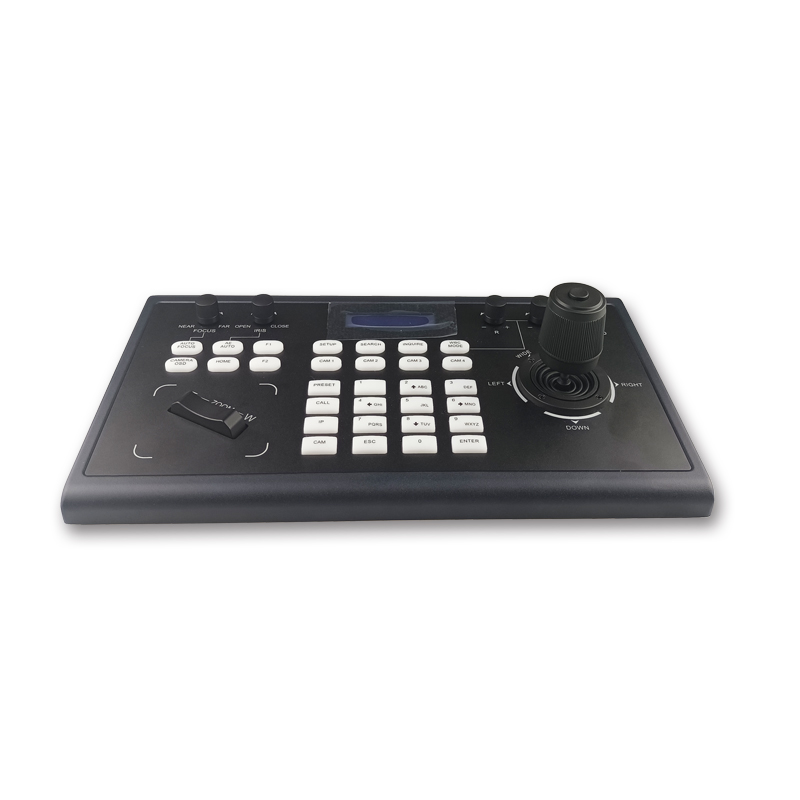

1.）4D Precise Joystick + 3D Knobs + Ergonomic Zoom Button:
Control camera parameters such as white balance, exposure, focus, and zoom.
2.） Newly Upgraded WEB Backstage Management:
Access the WEB backstage through a PC internet connection to set up the controller's main functions.
3.） Built-in 3-inch LCD Screen:
Supports real-time PVW of the current camera view through up streaming (NDI HX2 and RTSP only).
4.）Support 7 Camera Selection Shortcuts:
Quickly set 7 camera shortcuts according to requirements; up to 1000 camera information entries can be saved.
5.） Newly Upgraded UI Operation Interface:
Displays the main parameters of cameras directly, with a personalized and stylish interface.
6.） Remote Control of PTZ Camera Menu:
Quickly open the camera's menu and use the PVW screen or image screen for control. **This function is recommended to be used with our camera.
7.） White and Red Backlight Silicone Buttons:
High-quality silicone, excellent touch, supports white and red backlight, enabling smooth operation in low-light environments. Supports input of letters and common characters, as well as operations like editing the camera's name and address.
8.） Support Button Lock via One Click:
Lock buttons with one click to avoid accidental operation.
9.）Multiple Control Protocols, Applicable to Various Venues:
Supports VISCA, VISCA Over IP, VISCA TCP, PELCO P/D, Onvif, and NDI, with automatic protocol recognition. **Additional licenses are required to upgrade the NDI function. Please consult the manufacturer for details.

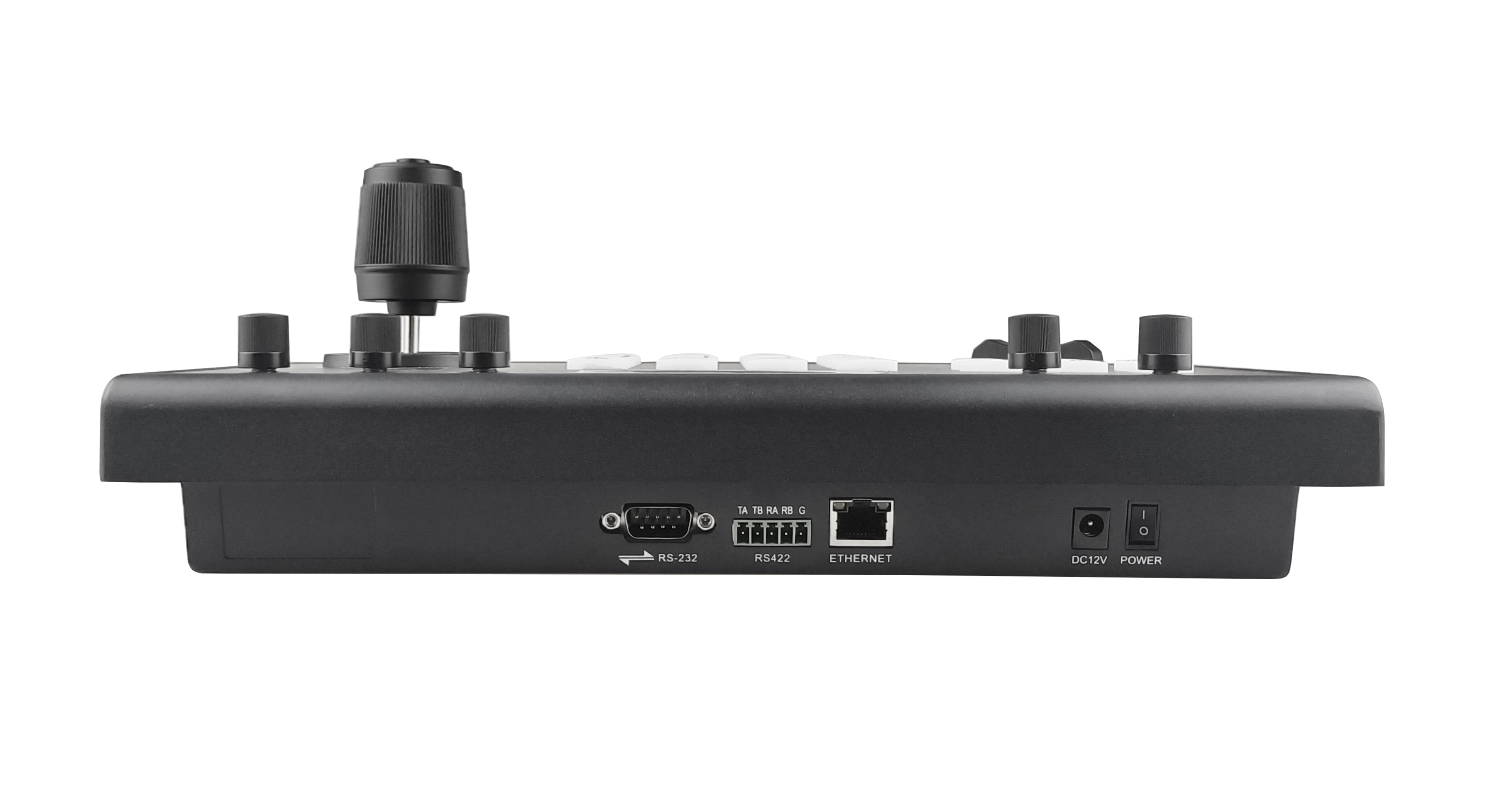

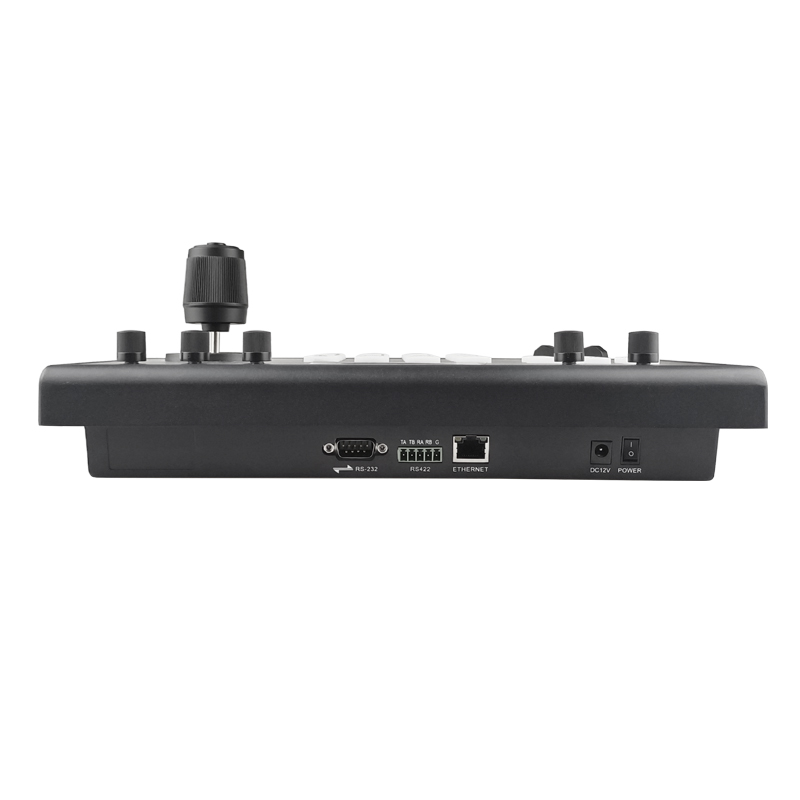

10.） Abundant Interfaces, Multiple Connection Methods:
External RS-232, RS422/485 serial ports, and RJ45 network interface. The network interface supports POE functionality, reducing wiring complexity.
11.）External Tally Interface:
Supports up to 8 tally channels.
12.） Support Customization Buttons:
Supports customization buttons F1 and F2, allowing the best operation functions to be set according to requirements.
- User name Member Level Quantity Specification Purchase Date
- Satisfaction ：
-
-
MC8430 4K60FPS 12X 25x 31x IP Live Streaming Camera for Classroom, Meeting room and Church
l 4K Ultra HD: 1/2.8 inch high quality 4K SONY CMOS sensor; 8.50 megapixel, resolution is up to 4K (3840x2160) at 30 FPS.
l Optical Zoom: 12X optical zoom with 70°viewing angle.
l Advanced Auto Focus Technology: Advanced auto focus technology allows the camera to move fast, accurately, and stably.
l Low Noise and High SNR: Low noise CMOS provides the high SNR. The use of leading 2D 3D noise reduction technology further reduce the noise while not comprising the clarity of image.
l Multiple Connections: It supports for HDMI, SDI, USB3.0, wired LAN and PoE. USB3.0 supports dual stream and SDI supports 100 meters transmission at 1080P60.
l Multiple Audio Compression Formats: It supports for YUY2、MJPEG、H.264、H.265、NV12 video coding formats. And the resolution of 3840X2160 at 30FPS is available under MJPEG、H.264、H.265 formats. Audio compression formats: AAC、MP3、G.711A
l Audio Input Jack: It supports audio coding in AAC、MP3、G.711A. And the sampling rate of 16000、32000、44100、48000 are available under AAC, MPS formats.
l Built-in Gravity Sensor: It is built in gravity sensor, supports for PTZ auto flip, easier for engineer to set up.
l Multiple Network Protocols: It supports for protocols of ONVIF、GB/T28181、RTSP、RTMP、VISCA OVER IP、IP VISCA、RTMPS、SRT, RTMP Push Mode, RTP multi-brodcasting mode, making it easy to link with stream media server(Wowza、FMS)
l Control Jack: RS422 compatible with RS485, RS232-IN, RS232-OUT, RS232 jack is capable of cascading.
l Multiple Control Protocols: It supports for control protocols of VISCA, PELCO-D, PELCO-P, and able to automatically identify the protocols.
l Super Quiet PTZ Movement: Adopting step driving motor mechanism and motor drive controller with high precision is to ensure PTZ works smoothly with low speed and without noise.
l Low-power Sleep Mode: It supports for low-power sleep/wake up. The power consumption in sleep mode is less than 400mW.
l Multiple Presets: It supports for 255 presets(10 presets called via remote control)
l IR & Wireless Remote Control: IR and Wireless Remote Control are available for options.
l AI Human Detection: Boasting high speed processor and advanced image processing and analytic algorithm, the camera supports for real-time tracking and zone-tracking.
l Wide Application: Applied in remote teaching, conference system, online training, and tele-medicine.
U.S.＄0.00U.S.＄0.00 -
MC8420 4K 12X SDI IP Video Conference Camera
l 4K Ultra HD: 1/2.8 inch high quality 4K SONY CMOS sensor; 8.50 megapixel, resolution is up to 4K (3840x2160) at 30 FPS.
l Optical Zoom: 12X optical zoom with 70°viewing angle.
l Advanced Auto Focus Technology: Advanced auto focus technology allows the camera to move fast, accurately, and stably.
l Low Noise and High SNR: Low noise CMOS provides the high SNR. The use of leading 2D 3D noise reduction technology further reduce the noise while not comprising the clarity of image.
l Multiple Connections: It supports for HDMI, SDI, USB3.0, wired LAN and PoE. USB3.0 supports dual stream and SDI supports 100 meters transmission at 1080P60.
l Multiple Audio Compression Formats: It supports for YUY2、MJPEG、H.264、H.265、NV12 video coding formats. And the resolution of 3840X2160 at 30FPS is available under MJPEG、H.264、H.265 formats. Audio compression formats: AAC、MP3、G.711A
l Audio Input Jack: It supports audio coding in AAC、MP3、G.711A. And the sampling rate of 16000、32000、44100、48000 are available under AAC, MPS formats.
l Built-in Gravity Sensor: It is built in gravity sensor, supports for PTZ auto flip, easier for engineer to set up.
l Multiple Network Protocols: It supports for protocols of ONVIF、GB/T28181、RTSP、RTMP、VISCA OVER IP、IP VISCA、RTMPS、SRT, RTMP Push Mode, RTP multi-brodcasting mode, making it easy to link with stream media server(Wowza、FMS)
l Control Jack: RS422 compatible with RS485, RS232-IN, RS232-OUT, RS232 jack is capable of cascading.
l Multiple Control Protocols: It supports for control protocols of VISCA, PELCO-D, PELCO-P, and able to automatically identify the protocols.
l Super Quiet PTZ Movement: Adopting step driving motor mechanism and motor drive controller with high precision is to ensure PTZ works smoothly with low speed and without noise.
l Low-power Sleep Mode: It supports for low-power sleep/wake up. The power consumption in sleep mode is less than 400mW.
l Multiple Presets: It supports for 255 presets(10 presets called via remote control)
l IR & Wireless Remote Control: IR and Wireless Remote Control are available for options.
l AI Human Detection: Boasting high speed processor and advanced image processing and analytic algorithm, the camera supports for real-time tracking and zone-tracking.
l Wide Application: Applied in remote teaching, conference system, online training, and tele-medicine.
U.S.＄0.00U.S.＄0.00 -
MC500A 4K 12X Optical Zoom AI Auto Tracking PTZ Conferencing Camera
Full-Featured USB
Compatible with USB3.0 & USB2.0. supports audio, encoding output,
UVC 1.1~1.5 protocols
4K Utra HD：Sony 1/2.5” UHD CMOS sensor 8.51 million pixels,resolution 4K (3840x2160)
HDMI 1.4b (optional)：Support HDMI 1.4, can directly output uncompressed 4K original video
71° wide-angle lens + 12x optical zoom
Real 8 million ultra-high resolution 4K lens, 12x optical zoom,horizontal FOV 71°
Low illumination ：Image noise reduce CMOS sensor in low illumination conditions, 2D& 3D noise reduction algorithms, Image signal-to-noise ratio is above 55dB
Support POE ：
Support POE (Power Over Ethernet),to control, supply power, video &
audio transmission through a network cable
Remote control
Multi way of control, using RS232 (RS485 optional) serial ports,internet and USB to control the camera
H.264 Slice/ H.264 SVC encoding support
Output H.264 stream supports Slice and SVC encoding modes, suitable for USB video conference
Dual stream
Supports two-channel code stream output(any two of YUY2、MJPEG、H.264) to reduce the pressure of host encoding and decoding
Rich and complete interface： Support HDMI, 4K video can be output at the same time
2 ways of power supply：
Support 12V Adapter and PoE power supply
U.S.＄0.00U.S.＄0.00 -
MC3002-20X 1080P 20X Optical Zoom PTZ Voice Auto Tracking Camera
1. 2pixels，1/2.8″HD color CMOS 2. 1080@30fps 720@30fps. 3. Digital 4 microphones array to pick up 0-5 meters voice 4. Wireless&wired connection with speakerphone/external microphone 5. Auto focus,20x optical zoom 6. Camera automatically rotates and tracks the voice 7. Multi-interfaces: USB2.0/USB3.0/HDMI/3.5mm line in micro/ line out speaker interface.
8. Adopt AEC & ANS & AGC technology,support 2D&3D noise reduction
U.S.＄0.00U.S.＄0.00
